Avanti JXN-26 - 저소음 고속 원심분리기
Avanti JXN-26 - 저소음 고속 원심분리기
Avanti® JXN-26을 통해 처리량이 많은 샘플 처리를 간소화하고 보다 많은 제어를 수행할 수 있습니다. 강력한 기능, 향상된 불균형 내구성(imbalance tolerance) 및 저소음 성능의 원심분리기를 사용하세요.
저소음 원심분리기, Avanti JXN-26 특징
- MobileFuge를 사용한 모니터링 및 제어의 유연성
- 사용하기 쉽게 설계된 데이터 관리 시스템
- 인체공학적 설계
- 직관적인 인터페이스
제품 특징
데이터 관리로 추적성 제공
- 공동실험실 또는 GMP 환경에 적합한 장비
- 데이터 로깅 및 실시간 실행 그래픽 활용
- 최대 50개의 고유 사용자 프로파일을 위한 암호 보호
- 네트워크로 여러 장비 연결
- 다양한 프로토콜 설정 및 저장
다양한 어플리케이션
- 온도 최적화를 통해 샘플 품질을 보장하고 원치 않는 인공 산물을 방지
- 고정형 앵글 및 스윙 버킷형 로터의 광범위한 라이브러리와 호환
- 다양한 어플리케이션과 워크플로우 요구사항에 적합 – 운영자 안전 및 시료 보호를 제공하는 BioSafe 시스템 포함
- Harvest Liners를 포함하는 광범위한 랩웨어는 완벽한 샘플 보호 솔루션을 제공
안전성 및 지속 가능성
- DRIC(Dynamic Rotor Inertia Check) 및 로터 인식은 정격 속도 이상으로 로터를 구동할 수 없도록 중복 안전 점검을 제공
- SR(Switched Reluctance)을 통해 마찰계수를 줄이고 높은 토크의 힘을 통해 실험시간을 단축
- 기존 원심분리기보다 더 적은 에너지 사용
사용하기 쉬운 소프트웨어
- 설정 및 실제 실행 조건을 동시에 표시
- 코드가 아닌 이름으로 로터 선택
- 11가지 가속/12가지 감속 등급
- 지연 시작 가능
- 정확한 재현성을 요구하는 어플리케이션을 위해 99:59, Hold 및 ω2t 통합하여 설정
Explore Avanti JXN-26 Models
Related Parts for Avanti JXN-26

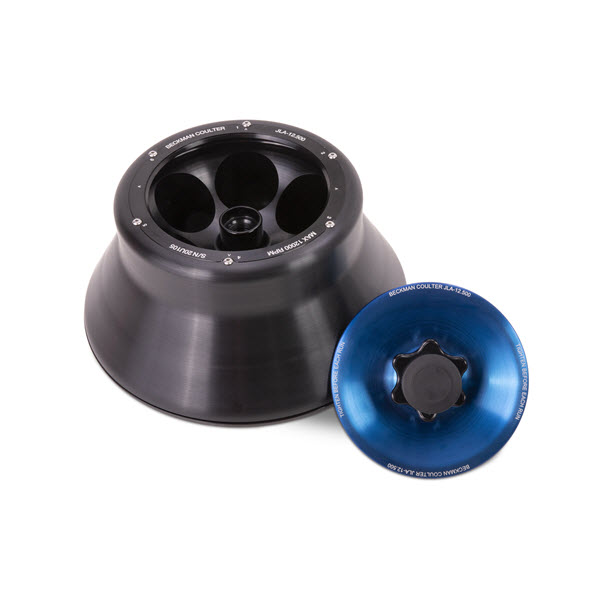

J-LITE® JLA-12.500 BioCertified Fixed Angle Aluminum Rotor
For use in Avanti JXN-26 and JXN-30 high-performance centrifuges. Major applications: Large-volume and high-force. Ideal for protein precipitation and lysate clarification.
JA-30.50 Ti Fixed-Angle Titanium Rotor, Biosafety Lid- 8 x 50 mL, 30,000 rpm, 108,860 x g
The JA-30.50 Ti fixed-angle rotor is designed to hold up to eight 50-mL tubes at a 34-degree angle. Used in Beckman Coulter Avanti J and J2 series centrifuges, the JA-30.50 Ti rotor develops centrifugal forces that can efficiently pellet cells from large volumes, or cell particles from tissue homogenates. Short column methods (i.e., partially filled tubes) may also be used to purify large quantities of virus in a cushion gradient.
JA-30.50 Ti Fixed-Angle Titanium Rotor, Single Lock Lid- 8 x 50 mL, 30,000 rpm, 108,860 x g
The JA-30.50 Ti fixed-angle rotor is designed to hold up to eight 50-mL tubes at a 34-degree angle. Used in Beckman Coulter Avanti J and J2 series centrifuges, the JA-30.50 Ti rotor develops centrifugal forces that can efficiently pellet cells from large volumes, or cell particles from tissue homogenates. Short column methods (i.e., partially filled tubes) may also be used to purify large quantities of virus in a cushion gradient.
JA-12 Fixed-Angle Aluminum Rotor, Biosafety Lid- 12 x 50 mL, 12,000 rpm, 23,200 x g
The JA-12 fixed angle rotor, rated for 12,000 RPM, is designed to hold up to twelve 50-mL tubes at a 35-degree angle (see Figure 1). Used in Beckman Coulter J2 and Avanti® J series centrifuges, the JA-12 rotor develops centrifugal forces that can efficiently pellet cells, bacteria, and food products; separate proteins, viruses, and sub-cellular fractions, and do phase separation and binding studies.
JA-14.50 Fixed-Angle Aluminum Rotor, Biosafe, 16 x 50 mL conical, 14,000 rpm, 35,000 x g
16 x 50 ml conical rotor , 14.000 rpm, 35.000 x g
JA-14.50 Fixed-Angle Aluminum Rotor, 16 x 50 mL conical, 14,000 rpm, 35,000 x g
The JA-14.50 fixed-angle rotor is designed to hold up to sixteen 50-mL conical tubes at a 35-degree angle. Used in Beckman Coulter Avanti J series centrifuges, the JA-14.50 rotor develops centrifugal forces that can efficiently pellet cells, bacteria, and food products; separate proteins, viruses, and subcellular fractions, and do phase separation and binding studies.
JA-25.15 Fixed-Angle Rotor, Aluminum, 24 x 15 mL, 25,000 rpm, 74,200 x g
The JA-25.15 fixed-angle rotor is designed to hold up to twenty-four 15-mL tubes in two concentric rows at a 25-degree angle. Used in Beckman Coulter Avanti J (except Avanti J-E) and J2 series centrifuges, the JA-25.15 rotor develops centrifugal forces that are especially efficient in pelleting subcellular particles, bacteria, algae, and chloroplasts, or in short-column banding of viruses and subcellular particles.
JA-25.15 Fixed-Angle Aluminum Rotor- 24 x 15 mL, 25,000 rpm, 74,200 x g
The JA-25.15 fixed-angle rotor is designed to hold up to twenty-four 15-mL tubes in two concentric rows at a 25-degree angle. Used in Beckman Coulter Avanti J (except Avanti J-E) and J2 series centrifuges, the JA-25.15 rotor develops centrifugal forces that are especially efficient in pelleting subcellular particles, bacteria, algae, and chloroplasts, or in short-column banding of viruses and subcellular particles.
JA-25.50 Fixed-Angle Rotor- Aluminum, 8 x 50 mL, 25,000 rpm, 75,600 x g
JA-25.50 Fixed-Angle Rotor with Single Lock Lid, Aluminum. Major applications: Harvesting bacteria, processing tissue homogenates, subcellular particulates, routine pelleting such as precipitates and phase separations. For use in Avanti J Series and J2 Series centrifuges.
JA-25.50 Fixed-Angle Aluminum Rotor, Biosafety Lid- 8 x 50 mL, 25,000 rpm, 75,600 x g
The JA-25.50 fixed-angle rotor is designed to hold up to eight 50-mL tubes at a 34-degree angle. Used in Beckman Coulter Avanti J and J2 series centrifuges, the JA-25.50 rotor develops centrifugal forces that can efficiently pellet cells from large volumes, or cell particles from tissue homogenates.
J-LITE(R) JLA-16.250 Fixed-Angle Aluminum Rotor, Single Lock- 6x250mL, 16,000 rpm, 38,400 x g
Major applications: General purpose, large-volume and multitube processing. Lightweight alternative to conventional 6x 250 rotors; empty rotor weight is 10.3 kg (22.7 lb). For use in Avanti J Series and J2 Series centrifuges.
JA-10 Fixed-Angle Aluminum Rotor- 6 x 500 mL, 10,000 rpm, 17,700 x g
JA-10 Fixed-Angle Rotor, Aluminum; Includes carrying handle. Major applications: Large-volume for initial processing of tissue homogenates and other large particles. For use in Avanti J Series and J2 Series centrifuges.
JA-14 Fixed-Angle Aluminum Rotor, Biosafety Lid- 6 x 250 mL, 14,000 rpm, 30,100 x g
JA-14 Fixed-Angle Rotor, Aluminum; Major applications: General-purpose, large-volume and multi-tube processing. Adapters permit use of up to 30 each 15-mL tubes and up to 72 each 3-mL tubes. For use in Avanti® J Series and J2 Series centrifuges.
JA-17 Fixed-Angle Aluminum Rotor, Biosafety- Lid 14 x 50 mL, 17,000 rpm, 39,800 x g
JA-17 Fixed-Angle Rotor, Aluminum; Major applications: High-force, large-volume. Pelleting bacteria, cell membranes, and subcellular organelles. For use in Avanti J Series and J2 Series centrifuges.
JA-18 Fixed-Angle Rotor, Aluminum, 10 x 100 mL, 18,000 rpm, 47,900 x g
JA-18 Fixed-Angle Rotor with Biosafety Lid, Aluminum;
Major applications: High-force, large-volume. Pelleting bacteria, cell membranes, and subcellular organelles.
For use in Avanti J Series and J2 Series centrifuges.
JA-18.1 Fixed-Angle Rotor,Aluminum, 24 x 1.8 mL, 18,000 rpm, 42,100 x g
JA-18.1 Fixed-Angle Rotor, Aluminum; Includes 24 reversible adapters that provide 18,000 rpm maximum speed. Tubes are not included. In the J2-HC, maximum speeds are reduced to 15,000 rpm at 45 angle and 16,000 rpm at 25 angle.
Major applications: High-force sedimentation in microcentrifuge tubes under refrigerated conditions.
For use in Avanti J Series and J2 Series centrifuges (except Avanti J-E).
JA-20 Fixed-Angle Rotor
JA-20 Fixed-Angle Rotor, Aluminum, Biosafety Lid
Major applications: Harvesting bacteria and cell membranes, processing tissue homogenates, separating cell particulates.
For use in Avanti J Series centrifuges
JA-20.1 Fixed-Angle Rotor
JA-20.1 Fixed-Angle Rotor, Aluminum, Biosafety Lid.
Major applications: High-force, large-volume separation of particles with 100 S or larger sedimentation coefficients.
For use in Avanti J Series and J2 Series centrifuges.
JA-21 Fixed-Angle Rotor
The JA-21, rated for 21,000 RPM, is a fixed angle rotor designed to centrifuge up to eighteen 10-mL tubes at a 40-degree angle to the axis of rotation. Used in Beckman Coulter J2 and J6 series and Avanti J series centrifuges, the rotor develops centrifugal forces that can efficiently pellet subcellular organelles, viruses, bacteria, mitochondria, chlorplasts, or algae.
J-LITE(R) JLA-10.500 Fixed-Angle Aluminum Rotor, 6 x 500 mL, 10,000 rpm, 18,600 x g
For use in Avanti J Series and J2 Series centrifuges. Major applications: Large-volume for initial processing of bacteria or other cells from fermentors, clearing cell debris from homogenates, or pelleting subcellular organelles and protein precipitates.

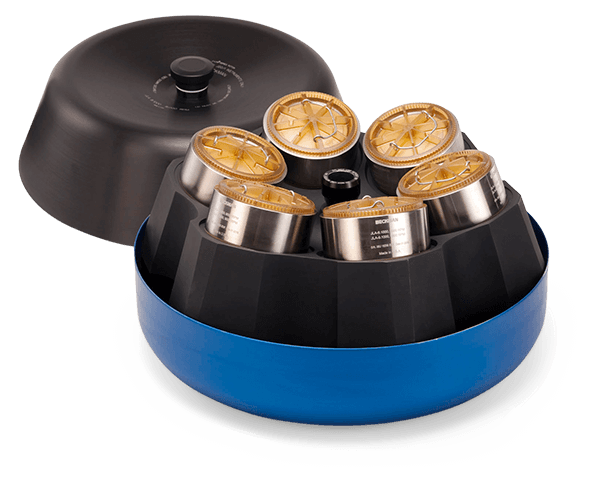

J-LITE JLA-8.1000 Fixed-Angle Aluminum Rotor- 6 x 1,000 mL, 8,000 rpm, 15,970 x g
For use in Avanti J-26 XP Series and Avanti J-26S Series centrifuges. Major applications: General purpose, large-volume processing, pelleting of bacteria, cell organelles, viruses, and precipitates.
J-LITE(R) JLA-9.1000 Fixed-Angle Aluminum Rotor- 4 x 1,000 mL, 9,000 rpm, 16,800 x g
JLA-9.1000 Fixed-Angle Rotor Package, Aluminum. Major applications: General purpose, large-volume processing, pelleting of bacteria, subcellular organelles, viruses, and precipitates. Empty rotor and windshield weight is 23.9 lb (10.8 kg). Package Includes: Part Number Description 969328, 969329, JLA-9.1000 Rotor
363563, 363686. Lid with removable canisters. Labware Kit Includes: Bottle Rack, Spatula, and Tool Kit (bottle grip and wrench). Upgrade required for existing instruments prior to 1998.
For use in Avanti J Series centrifuges.
363563, 363686. Lid with removable canisters. Labware Kit Includes: Bottle Rack, Spatula, and Tool Kit (bottle grip and wrench). Upgrade required for existing instruments prior to 1998.

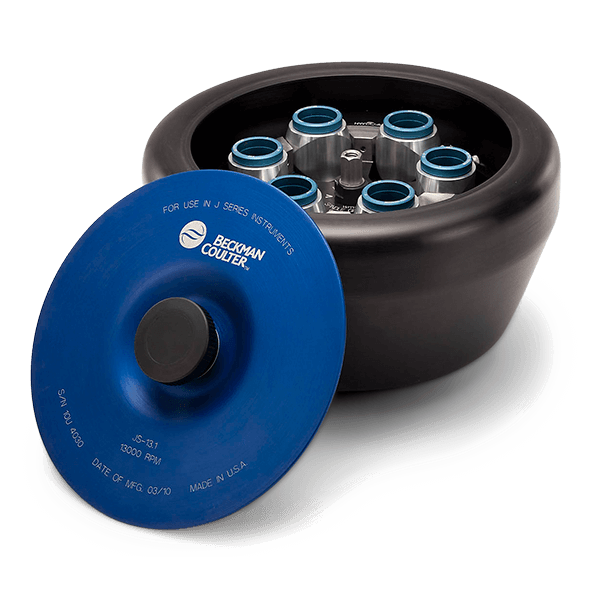

JS-13.1 Swinging-Bucket Aluminum Rotor with Carrying Handle
JS-13.1 Swinging-Bucket Rotor, Aluminum. Major applications: Harvesting bacteria, processing tissue homogenates, separating cell particulates. Isolation of cell membrane using density gradients. For use in Avanti J Series and J2 Series centrifuges.
JS-24.15 Swinging-Bucket Aluminum Rotor and Buckets
JS-24.15 Swinging-Bucket Rotor, Aluminum, Titanium Buckets. Major applications: Harvesting bacteria, processing tissue homogenates, subcellular particulates, routine pelleting such as precipitates and phase separations. For use in Avanti J Series centrifuges (except Avanti J-E and Avanti J-HC). * Reaches 24,000 rpm in the Avanti J-30I centrifuge only. Not recommended for use in Avanti J-25 Series (max speed 10,000 rpm), or Avanti J-26 XP Series (max. speed 10,000 rpm). Incompatible with all J2 Series.

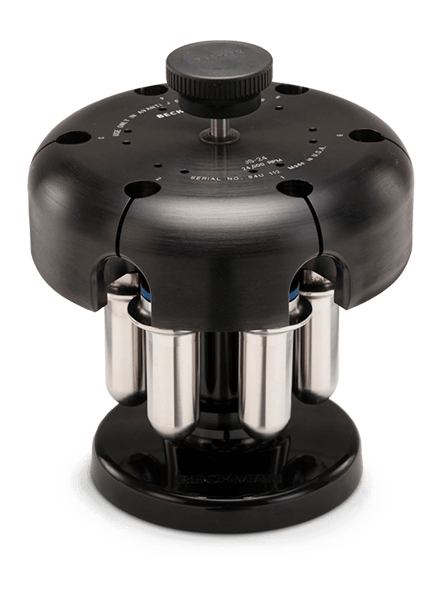

JS-24.38 Swinging-Bucket Aluminum Rotor and Buckets
JS-24.38 Swinging-Bucket Rotor, Aluminum, Titanium Buckets. Major applications: Harvesting bacteria, processing tissue homogenates, subcellular particulates, routine pelleting such as precipitates and phase separations. For use in Avanti J Series centrifuges (except Avanti J-E). * Reaches 24,000 rpm in the Avanti J-30I centrifuge only. Not recommended for use in Avanti J-25 Series (max. speed 10,000 rpm), or Avanti J-20XP Series (max. speed 10,000 rpm). Incompatible with all J2 Series.

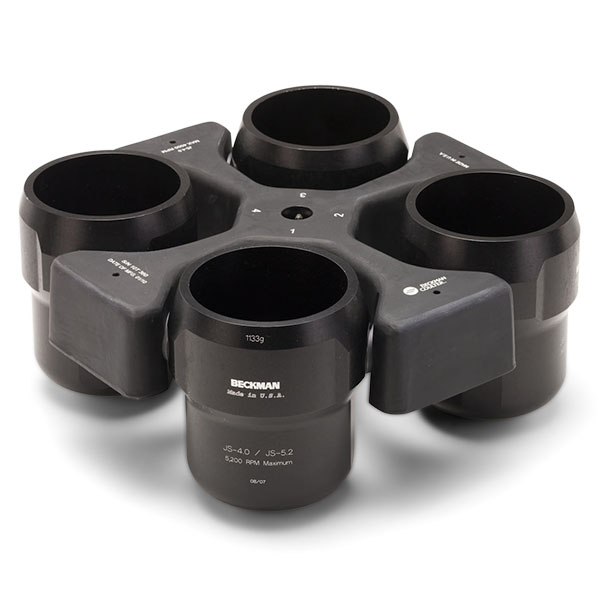

JS-4.0 Swinging-Bucket Aluminum Rotor and Buckets
JS-4.0 Swinging-Bucket Rotor (Unshielded), Aluminum. Unshielded, four-place rotor with aluminum rotor yoke and removable aluminum swinging buckets. Buckets are interchangeable with Microplate Carriers for spinning microtiter plates and MiniTube Racks. Holds up to four liters, four blood bags or four microtiter plate carriers. Accepts all Multi-Disc Adapters except 339119. Note: requires tie-down kit Part Number 367045 for use with Avanti J-26 XP Series centrifuges. Major applications: Rapid sedimentation of protein precipitates, large particles, cells, and cell debris. It can be used for binding studies and separating serum from whole blood. For use in Avanti J-26 XP Series, J-26S Series and J-6 Series centrifuges.
JS 4.3 Swinging-Bucket Rotor
JS-4.3 Swinging-Bucket Rotor is a four-place rotor with anodized aluminum buckets designed for use with modular disk adapters to accommodate a variety of tubes and other adapters and blood bag cups. For use in Avanti JXN-26, Avanti J-26S XP, Avanti J-26 XP, and Avanti J-HC centrifuges.
JS-5.3 AllSpin Swinging-Bucket Rotor and Buckets
JS-5.3 Swinging-Bucket Rotor, Anodized Aluminum. Four-place rotor with anodized aluminum buckets designed for use with adapters to accommodate a wide range of tubes and bottles. Rotor buckets are interchangeable with microplate carriers. Includes tie-down knob. Major applications: Rapid sedimentation of protein precipitates, large particles, cells, and cell debris. It can be used for binding studies and separating serum from whole blood. For use in Avanti J-E and J-26 XP Series centrifuges only.
JS-7.5 Swinging-Bucket Rotor
The JS-7.5 swinging bucket rotor, rated for 7500 rpm, is designed to pellet cells and cell debris at moderate g-forces using round, conical, or flat-bottomed tubes or bottles in buckets or multi-tube carriers. Designed for use in Beckman Coulter J-Series, J2, and J6 centrifuges.
